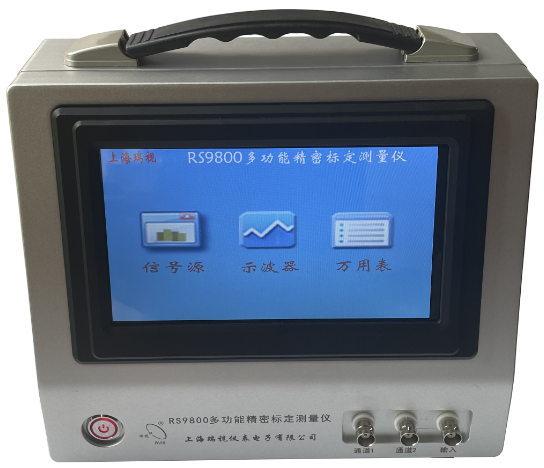

RS9800 multi-function precision calibration measuring instrument

Main uses: Suitable for calibration of secondary instrument shaft vibration, shell vibration (tile vibration), speed, intensity (speed), eccentricity and other card system.

Details

1. Signal source function (CH1 and CH2)


1) Output signal: Through the touch screen can set the output with bias sine wave signal, output DC voltage signal, output AC sine wave signal, output square wave signal;


2) Signal frequency setting range: 0.001Hz~20kHz can be set through the touch screen;


Frequency accuracy: ±0.03%


3) Signal amplitude setting range :0 ~10.0V P-P(RMS:0-3.536V) can be set through the touch screen;


Amplitude display resolution: 0.001mv~1mv


4) Bias voltage setting range: -22.0V~+10.0V can be set through the touch screen;


Bias voltage display resolution: 0.01V


5) Signal phase difference setting range: 0~360 degrees can be set through the touch screen;


Two, oscilloscope function:


1) 1 channel oscilloscope function, can display various signal waveforms in real time;


2) The display time and amplitude of the signal waveform can be adjusted through the touch screen;


Three, multimeter function:


1) 1 multimeter function, through the touch screen can choose real-time measurement of voltage signal and current signal;


2) Current measurement range: 0.0mA~65mA
